Anti Static/ Electric Conductive Polyurethane wheels (Aluminum insert) with Stainless Steel 304 quality Castors (SS THREADED STEM TYPE CASTORS)


+ Designed for use in ESD (Electro Static Discharge) environments as a part of a effective ESD Control Program.
+ Suited for Epoxy floors with Anti Static Properties, non marking Tread of 95 Shore “A” Hardness).
+ Color Availability: Dark Blue / Dark Grey.
+ Loading Capacities mentioned above as considering “Safe Working Loads”.
+ Threaded stem sizes available: M10 x 50, M12 x 50, M16 x 50, M20 x 50, M24 x 50, M27 x 50. (Length according to your requirement)


All sizes mentioned are in “mm” (millimeters)
We can manufacture Castors as per your Dimensional needs & Mounting specifications

SINGLE WHEEL CASTOR

Wheel Size
OD x W x ID
Bearing
Load per
Wheel /
Castor

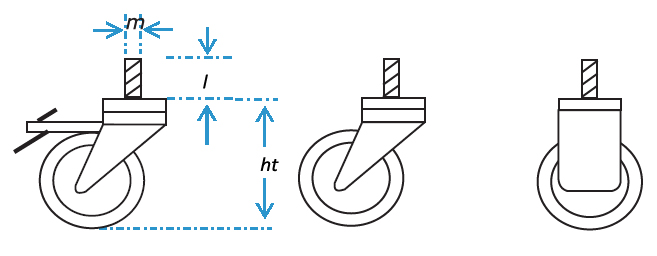

Pin Size
d x l
Height
ht
Swivel Castor
with Brake
Swivel Castor
Fixed Castor
50 x 22 x 6
Bush
15 kgs
M10 x 50
85
5022ASPU/SS/M10/Sc/Br
5022ASPU/SS/M10/Sc
5022ASPU/SS/M10/Fc
63 x 22 x 6
Bush
25 kgs
M10 x 50
95
6322ASPU/SS/M10/Sc/Br
6322ASPU/SS/M10/Sc
6322ASPU/SS/M10/Fc
75 x 32 x 10
Ball Bearing
35 kgs
M10 x 50
105
7532ASPU/SS/M10/Sc/Br
7532ASPU/SS/M10/Sc
7532ASPU/SS/M10/Fc
100 x 35 x 10
Ball Bearing
60 kgs
M12 x 50
135
10035ASPU/SS/M12/Sc/Br
10035ASPU/SS/M12/Sc
10035ASPU/SS/M12/Fc
100 x 50 x 13
Ball Bearing
100 kgs
M16 x 50
135
10050ASPU/SS/M16/Sc/Br
10050ASPU/SS/M16/Sc
10050ASPU/SS/M16/Fc
125 x 50 x 13
Ball Bearing
125 kgs
M20 x 50
155
12550ASPU/SS/M20/Sc/Br
12550ASPU/SS/M20/Sc
10050ASPU/SS/M20/Fc
150 x 50 x 13
Ball Bearing
150 kgs
M24 x 50
190
15050ASPU/SS/M24/Sc/Br
15050ASPU/SS/M24/Sc
15050ASPU/SS/M24/Fc
200 x 50 x 13
Ball Bearing
175 kgs
M24 x 50
240
20050ASPU/SS/M24/Sc/Br
20050ASPU/SS/M24/Sc
20050ASPU/SS/M24/Fc
