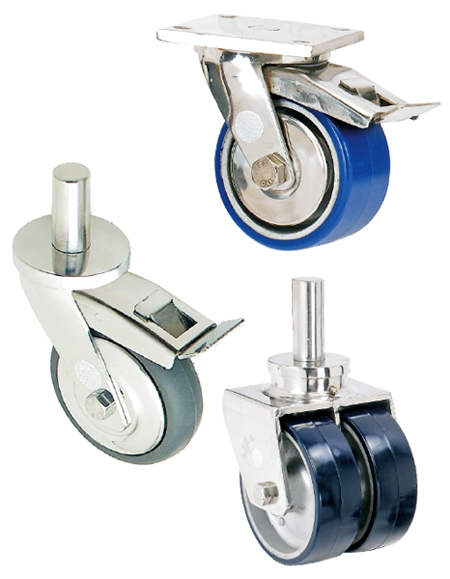

Anti Static/ Electric Conductive Polyurethane wheels (Aluminum insert) with Stainless Steel 304 quality Castors (SOLID SS PIN/STUD TYPE CASTORS)


+ Designed for use in ESD (Electro Static Discharge) environments as a part of a effective ESD Control Program.
+ Suited for Epoxy floors with Anti Static Properties, non marking. Tread of 95 Shore “A” Hardness.
+ Color Availability: Dark Blue / Dark Grey.
+ Loading Capacities mentioned above as considering “Safe Working Loads”.
+ SOLID SS Pin/ Stud sizes available: 18 x 50, 22 x 50, 25 x 50, 30 x 50, 32 x 50, 32 x 70, 35 x 70.


All sizes mentioned are in “mm” (millimeters)
We can manufacture Castors as per your Dimensional needs & Mounting specifications

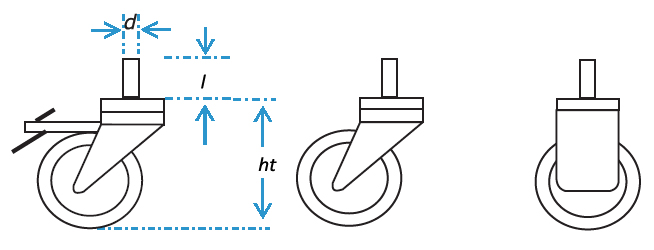

SINGLE WHEEL CASTOR

Wheel Size
OD x W x ID
Bearing
Load per
Wheel /
Castor
Pin Size
d x l
Height
ht
Swivel Castor
with Brake
Swivel Castor
Fixed Castor
50 x 22 x 6
Bush
20 kgs
18 x 50
85
5022ASPU/SS/P18/Sc/Br
5022ASPU/SS/P18/Sc
5022ASPU/SS/P18/Fc
63 x 22 x 6
Bush
25 kgs
22 x 50
95
6322ASPU/SS/P22/Sc/Br
6322ASPU/SS/P22/Sc
6322ASPU/SS/P22/Fc
75 x 32 x 10
Ball Bearing
40 kgs
22 x 50
105
7532ASPU/SS/P22/Sc/Br
7532ASPU/SS/P22/Sc
7532ASPU/SS/P22/Fc
100 x 35 x 10
Ball Bearing
70 kgs
22 x 50
135
10035ASPU/SS/P22/Sc/Br
10035ASPU/SS/P22/Sc
10035ASPU/SS/P22/Fc
100 x 50 x 13
Ball Bearing
100 kgs
22/32 x 50
135
10050ASPU/SS/P22/Sc/Br
10050ASPU/SS/P22/Sc
10050ASPU/SS/P22/Fc
125 x 50 x 13
Ball Bearing
125 kgs
22/32 x 50
155
12550ASPU/SS/P22/Sc/Br
12550ASPU/SS/P22/Sc
10050ASPU/SS/P22/Fc
150 x 50 x 13
Ball Bearing
150 kgs
22/32 x 50
190
15050ASPU/SS/P32/Sc/Br
15050ASPU/SS/P32/Sc
15050ASPU/SS/P32/Fc
200 x 50 x 13
Ball Bearing
175 kgs
32 x 50
240
20050ASPU/SS/P32/Sc/Br
20050ASPU/SS/P32/Sc
20050ASPU/SS/P32/Fc


TWIN WHEEL CASTOR

Wheel Size
OD x W x ID
Bearing
Load per
Wheel /
Castor
Pin Size
d x l
Height
ht
Swivel Castor
with Brake
Swivel Castor
Fixed Castor
125 x 50 x 13
Ball Bearing
250 kgs
32 x 50
175
12550ASPU/SS/TW/P32/Sc/Br
12550ASPU/SS/TW/P32/Sc
12550ASPU/SS/TW/P32/Fc
150 x 50 x 13
Ball Bearing
300 kgs
32 x 50
200
15050ASPU/SS/TW/P32/Sc/Br
15050ASPU/SS/TW/P32/Sc
15050ASPU/SS/TW/P32/Fc
200 x 50 x 13
Ball Bearing
375 kgs
32 x 50
250
20050ASPU/SS/TW/P32/Sc/Br
20050ASPU/SS/TW/P32/Sc
20050ASPU/SS/TW/P32/Fc
250 x 60 x 13
Ball Bearing
450 kgs
35 x 50
305
25060ASPU/SS/TW/P35/Sc/Br
25060ASPU/SS/TW/P35/Sc
25060ASPU/SS/TW/P35/Fc
