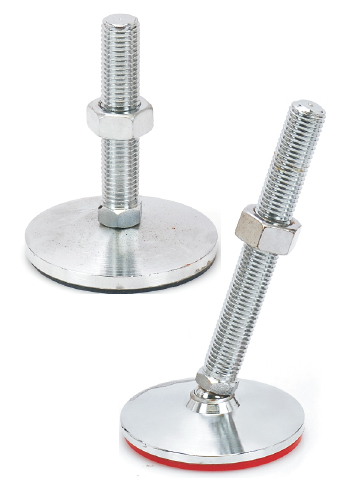

Anti Vibration Mounts / Adjusting Glides / Leveling Feet in stainless steel & Carbon Steel (Chrome Plated) with Polyurethane base


+ PU Base with Anti Static Properties can be manufactured on request
+ Loading Capacities mentioned above as considering “Safe Working Loads”
+ Color Availability: PU Base in Red OR Dark Blue Color


All sizes mentioned are in “mm” (millimeters)
We can manufacture Castors as per your Dimensional needs & Mounting specifications

Base
Dia
Base
MOC
SS Stud
Thread
SS Stud
Length
Recommended
Loading (kgs)
Per Mount
Series
80
PU with SS 304
M16
125
150
LM-PU-SS/080/M16125
100
PU with SS 304
M20
125
200
LM-PU-SS/100/M20125
125
PU with SS 304
M20
125
300
LM-PU-SS/125/M20125
140
PU with SS 304
M24
125
400
LM-PU-SS/140/M24125

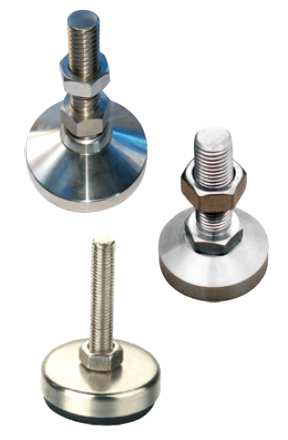

Anti Vibration Mounts / Adjusting Glides / Leveling Feet in stainless steel & Carbon Steel (Zinc Plated) with Polyurethane base


+ Levelling Mounts will be provided with an Anti Static PU Floor Contact OR PU Floor Contact, bonded to the Stainless Steel Round Base Plate.
+ Loading Capacities mentioned above as considering “Safe Working Loads”
+ Each Levelling Mount will be provided with SS Nuts & Washers.


All sizes mentioned are in “mm” (millimeters)
We can manufacture Castors as per your Dimensional needs & Mounting specifications

Base
Dia
Base
MOC
SS Stud
Thread
SS Stud
Length
Recommended
Loading (kgs)
Per Mount
Series
50
PU with SS 304
M10
50
40
LM/050/M10/050/SS
80
PU with SS 304
M12
125
75
LM/080/M12/125/SS
80
PU with SS 304
M16
125
150
LM/080/M16/125/SS
80
PU with SS 304
M20
125
200
LM/080/M20/125/SS
100
PU with SS 304
M16
125
240
LM/100/M16/125/SS
100
PU with SS 304
M20
125
280
LM/100/M20/125/SS
120
PU with SS 304
M20
125
300
LM/120/M20/125/SS
120
PU with SS 304
M24
125
360
LM/120/M24/125/SS
150
PU with SS 304
M24
125
390
LM/150/M24/125/SS
150
PU with SS 304
M27
125
480
LM/150/M27/125/SS
180
PU with SS 304
M27
125
550
LM/180/M27/125/SS
