Natural Rubber wheels (Nylon Insert) with Stainless Steel 304 quality Castors
(SOLID SS PIN/STUD TYPE CASTORS)


+ Suited for Kota/ Tiled floors for inter departmental transfers/ packing dept/ passage ways/ non sterile production areas
+ Color Availability: Light Grey
+ Loading Capacities mentioned above as considering “Safe Working Loads”
+ SOLID SS Pin/ Stud sizes available: 18 x 50, 22 x 50, 25 x 50, 30 x 50, 32 x 50, 32 x 70, 35 x 70


All sizes mentioned are in “mm” (millimeters)
We can manufacture Castors as per your Dimensional needs & Mounting specifications

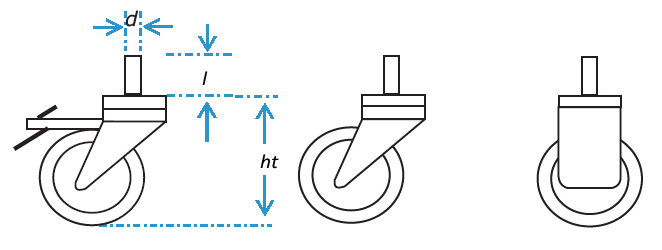

SINGLE WHEEL CASTOR

Wheel Size
OD x W x ID
Bearing
Load per
Wheel /
Castor
Pin Size
d x l
Height
ht
Swivel Castor
with Brake
Swivel Castor
Fixed Castor
80 x 30 x 10
Roller Bearing
30 kgs
22 X 50
110
8030RB/SS/P22/Sc/Br
8030RB/SS/P22/Sc
8030RB/SS/P22/Fc
100 x 30 x 10
Roller Bearing
50 kgs
22 X 50
135
10030RB/SS/P22/Sc/Br
10030RB/SS/P22/Sc
10030RB/SS/P22/Fc
125 x 38 x 13
Roller Bearing
60 kgs
22 X 50
155
12538RB/SS/P22/Sc/Br
12538RB/SS/P22/Sc
12538RB/SS/P22/Fc
140 x 38 x 13
Roller Bearing
90 kgs
22/32 X 50
180
14038RB/SS/P22/Sc/Br
14038RB/SS/P22/Sc
14038RB/SS/P22/Fc
160 x 40 x 13
Roller Bearing
100 kgs
22/32 X 50
220
16040RB/SS/P32/Sc/Br
16040RB/SS/P32/Sc
16040RB/SS/P32/Fc
180 x 50 x 13
Roller Bearing
120 kgs
32 X 50
220
18050RB/SS/P32/Sc/Br
18050RB/SS/P32/Sc
18050RB/SS/P32/Fc
200 x 50 x 13
Roller Bearing
150 kgs
32 X 50
240
20050RB/SS/P32/Sc/Br
20050RB/SS/P32/Sc
20050RB/SS/P32/Fc
