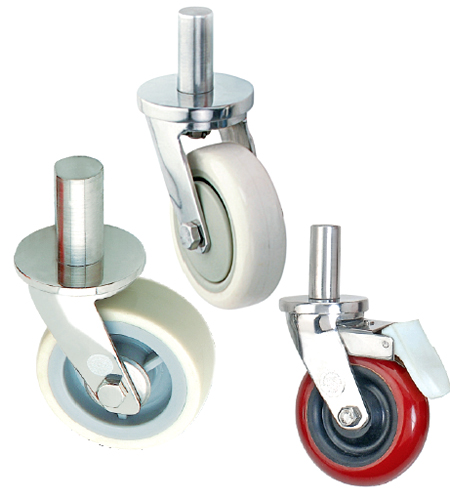

Polyurethane wheels (Nylon Insert) with Stainless Steel 304 quality Castors
(SOLID SS PIN/STUD TYPE CASTORS)


+ Suited for EPOXY FLOORS in Clean Rooms, Pharmaceutical Production Areas, R & D Labs etc.
+ Polyurethane tread of 92 Shore “A” Hardness, as per Internationally acceptable norms.
+ Color Availability: Red/ Blue/ Brown/ White.
+ Loading Capacities mentioned above as considering “Safe Working Loads”.
+ SOLID SS Pin/ Stud sizes available: 18 x 50, 22 x 50, 25 x 50, 30 x 50, 32 x 50, 32 x 70, 35 x 70.


All sizes mentioned are in “mm” (millimeters)
We can manufacture Castors as per your Dimensional needs & Mounting specifications

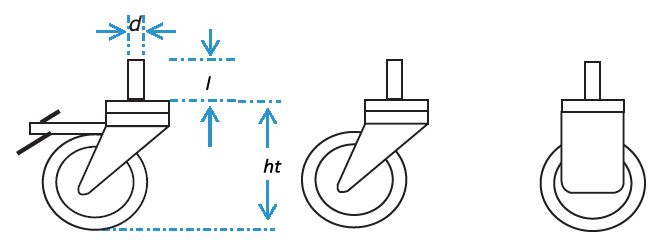

SINGLE WHEEL CASTOR

Wheel Size
OD x W x ID
Bearing
Load per
Wheel /
Castor
Pin Size
d x l
Height
ht
Swivel Castor
with Brake
Swivel Castor
Fixed Castor
50 x 22 x 6
Bush
15 kgs
18 x 50
85
5022PU/SS/P18/Sc/Br
5022PU/SS/P18/Sc
5022PU/SS/P18/Fc
50 x 25 x 6
Ball Bearing
20 kgs
18 x 50
85
5025PU/SS/P18/Sc/Br
5025PU/SS/P18/Sc
5025PU/SS/P18/Fc
60 x 24 x 10
Ball Bearing
25 kgs
22 x 50
95
6024PU/SS/P22/Sc/Br
6024PU/SS/P22/Sc
6024PU/SS/P22/Fc
75 x 32 x 10
Ball Bearing
35 kgs
22 x 50
105
7532PU/SS/P22/Sc/Br
7532PU/SS/P22/Sc
7532PU/SS/P22/Fc
75 x 38 x 10
Ball Bearing
70 kgs
22 x 50
105
7538PU/SS/P22/Sc/Br
7538PU/SS/P22/Sc
7538PU/SS/P22/Fc
100 x 32 x 10
Ball Bearing
55 kgs
22 x 50
135
10032PU/SS/P22/Sc/Br
10032PU/SS/P22/Sc
10032PU/SS/P22/Fc
100 x 50 x 13
Roller Bearing
100 kgs
22/32 x 50
135
10050PU/SS/P22/Sc/Br
10050PU/SS/P22/Sc
10050PU/SS/P22/Fc
125 x 32 x 13
Ball Bearing
65 kgs
22 x 50
155
12532PU/SS/P22/Sc/Br
12532PU/SS/P22/Sc
12532PU/SS/P22/Fc
125 x 50 x 13
Roller Bearing
125 kgs
22/32 x 50
155
12550PU/SS/P22/Sc/Br
12550PU/SS/P22/Sc
12550PU/SS/P22/Fc
150 x 50 x 13
Roller Bearing
150 kgs
22/32 x 50
190
15050PU/SS/P32/Sc/Br
15050PU/SS/P32/Sc
15050PU/SS/P32/Fc
200 x 50 x 13
Roller Bearing
175 kgs
32 X 50
240
20050PU/SS/P32/Sc/Br
20050PU/SS/P32/Sc
20050PU/SS/P32/Fc


TWIN WHEEL CASTOR

Wheel Size
OD x W x ID
Bearing
Load per
Wheel /
Castor
Pin Size
d x l
Height
ht
Swivel Castor
with Brake
Swivel Castor
Fixed Castor
125 x 50 x 13
Roller Bearing
250 kgs
32 x 100
175
12550PU/SS/TW/P32/Sc/Br
12550PU/SS/TW/P32/Sc
12550PU/SS/TW/P32/Fc
150 x 50 x 13
Roller Bearing
300 kgs
32 x 100
200
15050PU/SS/TW/P32/Sc/Br
15050PU/SS/TW/P32/Sc
15050PU/SS/TW/P32/Fc
200 x 50 x 13
Roller Bearing
375 kgs
32 x 100
250
20050PU/SS/TW/P32/Sc/Br
20050PU/SS/TW/P32/Sc
20050PU/SS/TW/P32/Fc
250 x 60 x 13
Ball Bearing
450 kgs
35 x 70
305
25060PU/SS/TW/P35/Sc/Br
25060PU/SS/TW/P35/Sc
25060PU/SS/TW/P35/Fc
