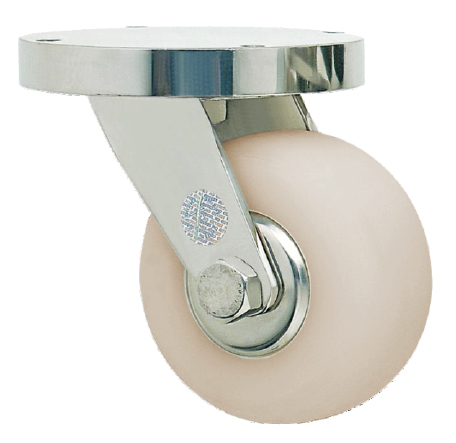

SOLID Autoclave Able SYNOFLEX wheel with Stainless Steel 316 quality Castors
(PLATE TYPE CASTORS)


+ Product tested under recommended loading with Constant Steam Temperature if 135 degrees centigrade.
+ Color Availability: off White.
+ Loading Capacities mentioned above as considering “Safe Working Loads”.
+ All metallic parts used in this product are of Stainless Steel 316 Quality.
+ Brake Type Castors are not recommended for this product as the Brake Strip if of “SPRING STEEL” which is corrosive due to Steam Temperature.


All sizes mentioned are in “mm” (millimeters)
We can manufacture Castors as per your Dimensional needs & Mounting specifications

SINGLE WHEEL CASTOR

Wheel Size
OD x W x ID
Bearing
Load per
Wheel /
Castor

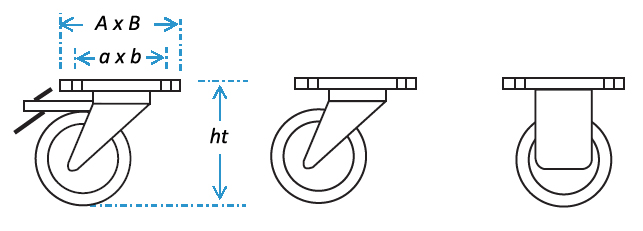

Plate Size
A x B
Hole Dist
a x b
Height
ht
Swivel Castor
Fixed Castor
50 x 22 x 6
Bush
15 kgs
75 x 55
50 x 30
85
5022Sy/SS/Plt/Sc
5022Sy/SS/Plt/Fc
75 x 32 x 10
Bush
35 kgs
75 x 75
60 x 60
105
7532Sy/SS/Plt/Sc
7532Sy/SS/Plt/Fc
100 x 32 x 10
Bush
55 kgs
75 x 75
60 x 60
135
10032Sy/SS/Plt/Sc
10032Sy/SS/Plt/Fc
100 x 50 x 13
Roller Bearing
100 kgs
100 x 100
76 X 76
135
10050Sy/SS/Plt/Sc
10050Sy/SS/Plt/Fc
125 x 35 x 10
Roller Bearing
75 kgs
100 x 100
76 X 76
155
12535Sy/SS/Plt/Sc
12535Sy/SS/Plt/Fc
125 x 50 x 13
Roller Bearing
125 kgs
100 x 100
76 X 76
155
12550Sy/SS/Plt/Sc
12550Sy/SS/Plt/Fc
150 x 50 x 13
Roller Bearing
150 kgs
125 x 100
100 X 75
190
15050Sy/SS/Plt/Sc
15050Sy/SS/Plt/Fc
200 x 50 x 13
Roller Bearing
175 kgs
125 x 100
100 X 75
240
20050Sy/SS/Plt/Sc
20050Sy/SS/Plt/Fc


TWIN WHEEL CASTOR

Wheel Size
OD x W x ID
Bearing
Load per
Wheel /
Castor
Plate Size
A x B
Hole Dist
a x b
Height
ht
Swivel Castor
Fixed Castor
125 x 50 x 13
Roller Bearing
250 kgs
125 x 100
100 X 75
175
12550Sy/SS/TW/Plt/Sc
12550Sy/SS/TW/Plt/Fc
150 x 50 x 13
Roller Bearing
300 kgs
125 x 100
100 X 75
200
15050Sy/SS/TW/Plt/Sc
15050Sy/SS/TW/Plt/Fc
200 x 50 x 13
Roller Bearing
375 kgs
125 x 100
100 X 75
250
20050Sy/SS/TW/Plt/Sc
20050Sy/SS/TW/Plt/Fc
