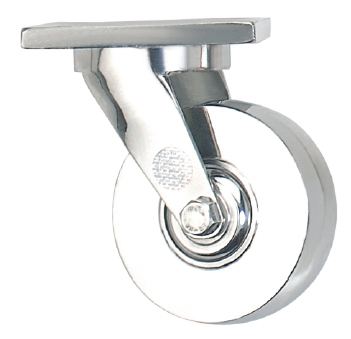

SOLID Stainless Steel wheel with Stainless Steel 304 quality Castors
(PLATE TYPE CASTORS)


+ Loading Capacities mentioned above as considering “Safe Working Loads”
+ Brake Type Castors are not recommended for this product
+ Product recommended for Tray Dryers


All sizes mentioned are in “mm” (millimeters)
We can manufacture Castors as per your Dimensional needs & Mounting specifications

SINGLE WHEEL CASTOR

Wheel Size
OD x W x ID
Bearing
Load per
Wheel /
Castor
Plate Size
A x B
Hole Dist
a x b
Height
ht
Swivel Castor
Fixed Castor
50 x 22 x 6
Bush
20 kgs
75 x 55
50 x 30
85
5022SS/SS/Plt/Sc
5022SS/SS/Plt/Fc
75 x 32 x 10
Bush
40 kgs
75 x 75
60 x 60
105
7532SS/SS/Plt/Sc
7532SS/SS/Plt/Fc
100 x 32 x 10
Bush
75 kgs
75 x 75
60 x 60
135
10032SS/SS/Plt/Sc
10032SS/SS/Plt/Fc
100 x 50 x 13
Bush
120 kgs
100 x 100
76 X 76
135
10050SS/SS/Plt/Sc
10050SS/SS/Plt/Fc
125 x 35 x 13
Bush
120 kgs
100 x 100
76 X 76
155
12535SS/SS/Plt/Sc
12535SS/SS/Plt/Fc
125 x 50 x 13
Bush
175 kgs
100 x 100
76 X 76
155
12550SS/SS/Plt/Sc
12550SS/SS/Plt/Fc
