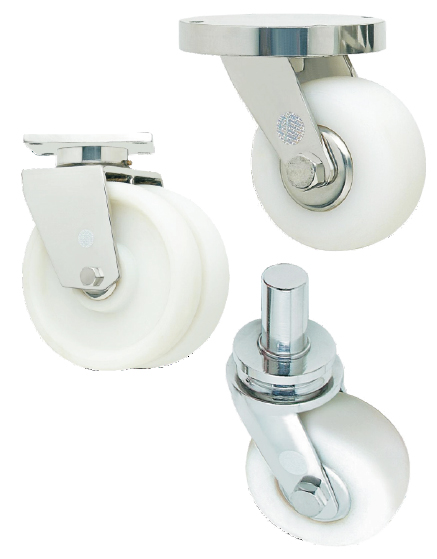

SOLID Virgin White Nylon/ UHMW wheel with Stainless Steel 304 quality Castors
(SS THREADED STEM TYPE CASTORS)


+ Suited for Kota/ Tiled floors for inter departmental transfers/ packing dept/ passage ways/ non sterile production areas.
+ Color Availability: Pure White.
+ Loading Capacities mentioned above as considering “Safe Working Loads”.
+ Threaded stem sizes available: M10 x 50, M12 x 50, M16 x 50, M20 x 50, M24 x 50, M27 x 50. (Length according to your requirement)


All sizes mentioned are in “mm” (millimeters)
We can manufacture Castors as per your Dimensional needs & Mounting specifications

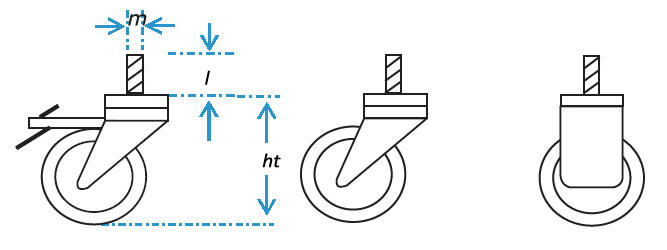

SINGLE WHEEL CASTOR

Wheel Size
OD x W x ID
Bearing
Load per
Wheel /
Castor
Pin Size
d x l
Height
ht
Swivel Castor
with Brake
Swivel Castor
Fixed Castor
50 x 22 x 6
Bush
10 kgs
M10 x 50
85
5022Ny/SS/M10/Sc/Br
5022Ny/SS/M10/Sc
5022Ny/SS/M10/Fc
75 x 32 x 10
Ball Bearing
30 kgs
M10 x 50
105
7532Ny/SS/M10/Sc/Br
7532Ny/SS/M10/Sc
7532Ny/SS/M10/Fc
100 x 34 x 10
Ball Bearing
50 kgs
M12 x 50
135
10034Ny/SS/M12/Sc/Br
10034Ny/SS/M12/Sc
10034Ny/SS/M12/Fc
100 x 50 x 13
Ball Bearing
80 kgs
M16 x 50
135
10050Ny/SS/M16/Sc/Br
10050Ny/SS/M16/Sc
10050Ny/SS/M16/Fc
125 x 35 x 10
Ball Bearing
60 kgs
M16 x 50
155
12535Ny/SS/M16/Sc/Br
12535Ny/SS/M16/Sc
12535Ny/SS/M16/Fc
125 x 50 x 13
Ball Bearing
100 kgs
M20 x 50
155
12550Ny/SS/M20/Sc/Br
12550Ny/SS/M20/Sc
12550Ny/SS/M20/Fc
150 x 50 x 13
Ball Bearing
125 kgs
M24 x 50
190
15050Ny/SS/M24/Sc/Br
15050Ny/SS/M24/Sc
15050Ny/SS/M24/Fc
200 x 50 x 13
Ball Bearing
140 kgs
M24 x 50
240
20050Ny/SS/M24/Sc/Br
20050Ny/SS/M24/Sc
20050Ny/SS/M24/Fc
