SOLID Virgin White Nylon/ UHMW wheel with Stainless Steel 304 quality Castors
(SOLID SS PIN/STUD TYPE CASTORS)


+ Suited for Kota/ Tiled floors for inter departmental transfers/ packing dept/ passage ways/ non sterile production areas
+ Color Availability: Pure White
+ Loading Capacities mentioned above as considering “Safe Working Loads”
+ SOLID SS Pin/ Stud sizes available: 18 x 50, 22 x 50, 25 x 50, 30 x 50, 32 x 50, 32 x 70, 35 x 70


All sizes mentioned are in “mm” (millimeters)
We can manufacture Castors as per your Dimensional needs & Mounting specifications

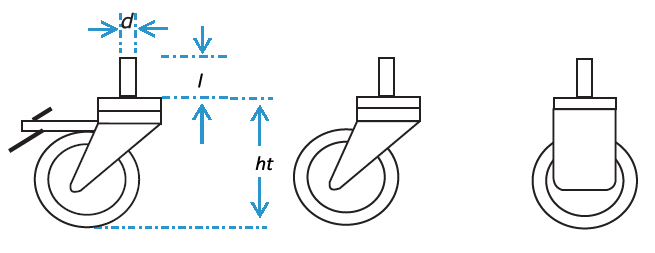

SINGLE WHEEL CASTOR

Wheel Size
OD x W x ID
Bearing
Load per
Wheel /
Castor
Pin Size
d x l
Height
ht
Swivel Castor
with Brake
Swivel Castor
Fixed Castor
50 x 22 x 6
Bush
15 kgs
18 x 50
85
5022Ny/SS/P18/Sc/Br
5022Ny/SS/P18/Sc
5022Ny/SS/P18/Fc
75 x 32 x 10
Ball Bearing
35 kgs
22 x 50
105
7532Ny/SS/P22/Sc/Br
7532Ny/SS/P22/Sc
7532Ny/SS/P22/Fc
100 x 34 x 10
Ball Bearing
55 kgs
22 x 50
135
10034Ny/SS/P22/Sc/Br
10034Ny/SS/P22/Sc
10034Ny/SS/P22/Fc
100 x 50 x 13
Ball Bearing
100 kgs
22/32 X 50
135
10050Ny/SS/P22/Sc/Br
10050Ny/SS/P22/Sc
10050Ny/SS/P22/Fc
125 x 35 x 10
Ball Bearing
65 kgs
22 X 50
155
12535Ny/SS/P22/Sc/Br
12535Ny/SS/P22/Sc
12535Ny/SS/P22/Fc
125 x 50 x 13
Ball Bearing
125 kgs
22/32 X 50
155
12550Ny/SS/P22/Sc/Br
12550Ny/SS/P22/Sc
12550Ny/SS/P22/Fc
150 x 50 x 13
Ball Bearing
150 kgs
22/32 X 50
190
15050Ny/SS/Pl32/Sc/Br
15050Ny/SS/P32/Sc
15050Ny/SS/P32/Fc
200 x 50 x 13
Ball Bearing
175 kgs
32 X 50
240
20050Ny/SS/P32/Sc/Br
20050Ny/SS/P32/Sc
20050Ny/SS/P32/Fc


TWIN WHEEL CASTOR

Wheel Size
OD x W x ID
Bearing
Load per
Wheel /
Castor
Pin Size
d x l
Height
ht
Swivel Castor
with Brake
Swivel Castor
Fixed Castor
125 x 50 x 13
Ball Bearing
250 kgs
32 X 50
175
12550Ny/SS/P32/Sc/Br
12550Ny/SS/P32/Sc
12550Ny/SS/P32/Fc
150 x 50 x 13
Ball Bearing
300 kgs
32 X 50
200
15050Ny/SS/P32/Sc/Br
15050Ny/SS/P32/Sc
15050Ny/SS/P32/Fc
200 x 50 x 13
Ball Bearing
375 kgs
32 X 50
250
20050Ny/SS/P32/Sc/Br
20050Ny/SS/P32/Sc
20050Ny/SS/P32/Fc
250 x 60 x 13
Ball Bearing
450 kgs
35 X 70
305
25060Ny/SS/P35/Sc/Br
25060Ny/SS/P35/Sc
25060Ny/SS/P35/Fc
