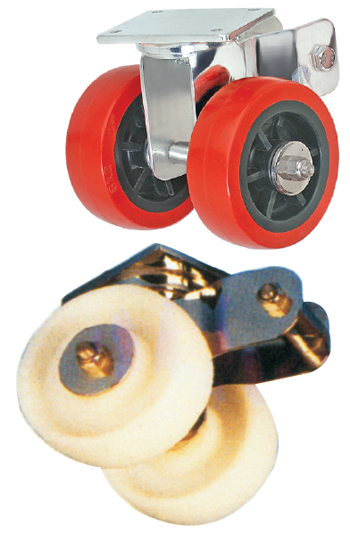

Twin Wheel Turn Table Assembly


+ The above product is for a Pull Type Application, to be fitted with a “T” shape handle
+ The product should be fitted under the base of the equipment in the front from where the equipment is intended to be steered, with 2 Nos FIXED CASTORS at the rear for balance & easy/ efficient manoeuvrability


All sizes mentioned are in “mm” (millimeters)
Sc+Br = SWIVEL + BRAKE

SINGLE WHEEL CASTOR

Wheel Size
Dia x Width
Bearing
Recommended
Load per Turn Table
Plate Size
A X B
Hole Dist
a x b
Height
ht
125 x 50
Ball Bearing
250 kgs
125 x 100
100 x 75
175
150 x 50
Ball Bearing
30 kgs
125 x 100
100 x 75
200
200 x 50
Ball Bearing
40 kgs
125 x 100
100 x 75
250
250 x 60
Ball Bearing
40 kgs
150 x 125
125 x 100
305
