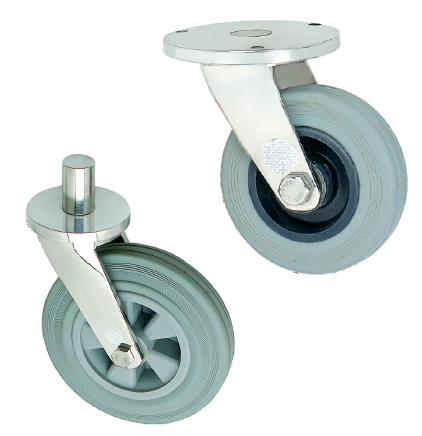

Natural Rubber wheels (Nylon Insert) with Stainless Steel 304 quality Castors
(PLATE TYPE CASTORS) |
| |
|
| |
+ Suited for Kota/ Tiled floors for inter departmental transfers/ packing dept/ passage ways/ non sterile production areas.
+ Color Availability: Light Grey.
+ Loading Capacities mentioned above as considering “Safe Working Loads”.
+ Top Plates can be manufactured as per your requirements. |
| |
|
| |
|
All sizes mentioned are in “mm” (millimeters)
We can manufacture Castors as per your Dimensional needs & Mounting specifications |
| |
SINGLE WHEEL CASTOR |
| |
Wheel Size
OD x W x ID |
Bearing |
Load per
Wheel /
Castor |

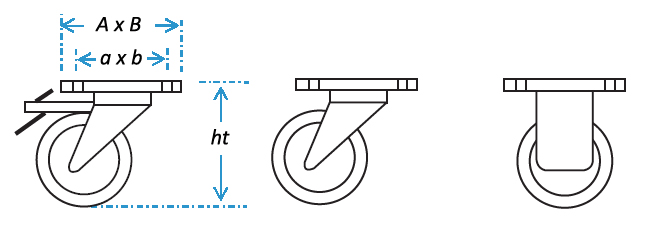

Plate Size
A x B |
Hole Dist
a x b |
Height
ht |
Swivel Castor
with Brake |
Swivel Castor |
Fixed Castor |
80 x 30 x 10 |
Roller
Bearing |
30 kgs |
75 x 75 |
60 x 60 |
110 |
8030RB/SS/Plt/Sc/Br |
8030RB/SS/Plt/Sc |
8030RB/SS/Plt/Fc |
100 x 30 x 10 |
Roller
Bearing |
50 kgs |
75 x 75 |
60 x 60 |
135 |
10030RB/SS/Plt/Sc/Br |
10030RB/SS/Plt/Sc |
10030RB/SS/Plt/Fc |
125 x 38 x 13 |
Roller
Bearing |
60 kgs |
100 x 75 |
80 x 55 |
155 |
12538RB/SS/Plt/Sc/Br |
12538RB/SS/Plt/Sc |
12538RB/SS/Plt/Fc |
140 x 38 x 13 |
Roller
Bearing |
90 kgs |
100 x 100 |
76 X 76 |
180 |
14038RB/SS/Plt/Sc/Br |
14038RB/SS/Plt/Sc |
14038RB/SS/Plt/Fc |
160 x 40 x 13 |
Roller
Bearing |
100 kgs |
125 x 100 |
100 X 75 |
200 |
16040RB/SS/Plt/Sc/Br |
16040RB/SS/Plt/Sc |
16040RB/SS/Plt/Fc |
180 x 50 x 13 |
Roller
Bearing |
120 kgs |
125 x 100 |
100 X 75 |
220 |
18050RB/SS/Plt/Sc/Br |
18050RB/SS/Plt/Sc |
18050RB/SS/Plt/Fc |
200 x 50 x 13 |
Roller
Bearing |
150 kgs |
125 x 100 |
100 X 75 |
240 |
20050RB/SS/Plt/Sc/Br |
20050RB/SS/Plt/Sc |
20050RB/SS/Plt/Fc |
|
| |
| |
