SOLID Virgin White Nylon/ UHMW wheel with Stainless Steel 304 quality Castors
(PLATE TYPE CASTORS) |
| |
|
| |
+ Suited for Kota / Tiled floors for inter departmental transfers/ packing dept/ passage ways/ non sterile production areas
+ Color Availability: Pure White
+ Loading Capacities mentioned above as considering “Safe Working Loads” |
| |
|
| |
|
All sizes mentioned are in “mm” (millimeters)
We can manufacture Castors as per your Dimensional needs & Mounting specifications |
| |
SINGLE WHEEL CASTOR |
| |
Wheel Size
OD x W x ID |
Bearing |
Load per
Wheel /
Castor |

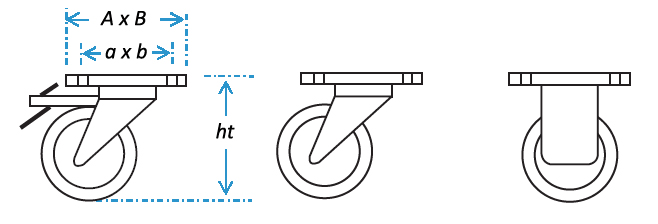

Plate Size
A x B |
Hole Dist
a x b |
Height
ht |
Swivel Castor
with Brake |
Swivel Castor |
Fixed Castor |
50 x 22 x 6 |
Bush |
15 kgs |
75 x 55 |
50 x 30 |
85 |
5022Ny/SS/Plt/Sc/Br |
5022Ny/SS/Plt/Sc |
5022Ny/SS/Plt/Fc |
75 x 32 x 10 |
Ball
Bearing |
35 kgs |
75 x 75 |
60 x 60 |
105 |
7532Ny/SS/Plt/Sc/Br |
7532Ny/SS/Plt/Sc |
7532Ny/SS/Plt/Fc |
100 x 34 x 10 |
Ball
Bearing |
55 kgs |
75 x 75 |
60 x 60 |
135 |
10034Ny/SS/Plt/Sc/Br |
10034Ny/SS/Plt/Sc |
10034Ny/SS/Plt/Fc |
100 x 50 x 13 |
Ball
Bearing |
100 kgs |
100 x 100 |
76 X 76 |
135 |
10050Ny/SS/Plt/Sc/Br |
10050Ny/SS/Plt/Sc |
10050Ny/SS/Plt/Fc |
125 x 35 x 10 |
Ball
Bearing |
65 kgs |
100 x 100 |
76 X 76 |
155 |
12535Ny/SS/Plt/Sc/Br |
12535Ny/SS/Plt/Sc |
12535Ny/SS/Plt/Fc |
125 x 50 x 13 |
Ball
Bearing |
125 kgs |
100 x 100 |
76 X 76 |
155 |
12550Ny/SS/Plt/Sc/Br |
12550Ny/SS/Plt/Sc |
12550Ny/SS/Plt/Fc |
150 x 50 x 13 |
Ball
Bearing |
150 kgs |
125 x 100 |
100 X 75 |
190 |
15050Ny/SS/Plt/Sc/Br |
15050Ny/SS/Plt/Sc |
15050Ny/SS/Plt/Fc |
200 x 50 x 13 |
Ball
Bearing |
175 kgs |
125 x 100 |
100 X 75 |
240 |
20050Ny/SS/Plt/Sc/Br |
20050Ny/SS/Plt/Sc |
20050Ny/SS/Plt/Fc |
|
| |
| |
| TWIN WHEEL CASTOR |
| |
Wheel Size
OD x W x ID |
Bearing |
Load per
Wheel /
Castor |
Plate Size
A x B |
Hole Dist
a x b |
Height
ht |
Swivel Castor
with Brake |
Swivel Castor |
Fixed Castor |
125 x 50 x 13 |
Ball
Bearing |
250 kgs |
125 x 100 |
100 X 75 |
175 |
12550Ny/SS/Plt/Sc/Br |
12550Ny/SS/Plt/Sc |
12550Ny/SS/Plt/Fc |
150 x 50 x 13 |
Ball
Bearing |
300 kgs |
125 x 100 |
100 X 75 |
200 |
15050Ny/SS/Plt/Sc/Br |
15050Ny/SS/Plt/Sc |
15050Ny/SS/Plt/Fc |
200 x 50 x 13 |
Ball
Bearing |
375 kgs |
125 x 100 |
100 X 75 |
250 |
20050Ny/SS/Plt/Sc/Br |
20050Ny/SS/Plt/Sc |
20050Ny/SS/Plt/Fc |
250 x 60 x 13 |
Ball
Bearing |
450 kgs |
150 x 125 |
125 X 100 |
305 |
25060Ny/SS/Plt/Sc/Br |
25060Ny/SS/Plt/Sc |
25060Ny/SS/Plt/Fc |
|
| |
